PERP-S / PERP-F / PERP-B

PERP-S / PERP-F / PERP-B
Product Name : PERP-S / PERP-F / PERP-B
Product Description



Specification:

Wheel diameter (mm)

160

200

Wheel width (mm)

46

46

Overall height (mm)

198

240

Capacity (kg)

280

330

Fitting options:

Plate and king pine hole (10.3 and 12.3 mm)

Materials:

Housing:

Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut

Wheel Centre:

Polyamide (PA)

Tread:

Elastic rubber

Bearings:

Double precision ball bearing; sealed

Inquiry
Product Introduction

Housing: Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut. (Stainless steel housing is also available for optional.)Material: Wheel center - polyamide (PA).Tread - Elastic rubber Double precision ball bearing.Available for black and gray colors.Soft Low noise Anti-acid and alkali Non-marking For trolleys; shelving; racks; machines; catering equipment or other applications.

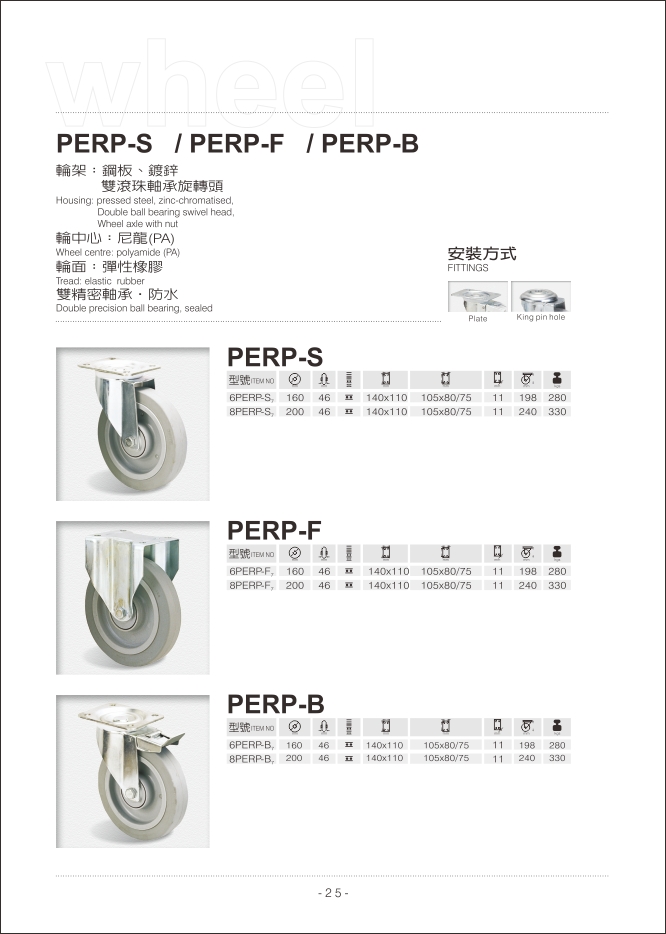

proimages/25.jpg
