PAR / PAO / PAP HEAVY DUTY CASTORS

PAR / PAO / PAP HEAVY DUTY CASTORS
Product Name : PAR / PAO / PAP HEAVY DUTY CASTORS
Product Description

Specification:

Wheel diameter (mm)

125

150

150

200

Wheel width (mm)

50

38

50

46

Overall height (mm)

164

193

193

240

Capacity (kg)

300

350

350

400

Fitting options:

Plate and king pine hole (10.3 and 12.3 mm)

Materials:

Housing:

Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut

Wheel:

Polyamide (PA); white or black

Bearings:
(optional)

PAR wheel - roller bearing.
PAO wheel - plain bearing.
RAP wheel - dourble bearing.

Inquiry
Product Introduction

Housing: pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut. Material: wheel made of polyamide (PA).PAR wheel with roller bearing.PAO wheel with plain bearing.RAP wheel with double precision ball bearing.Black or white colors.Temperature range from -40 to +80.For trolleys; shelving; racks; machines; catering equipment or other applications.

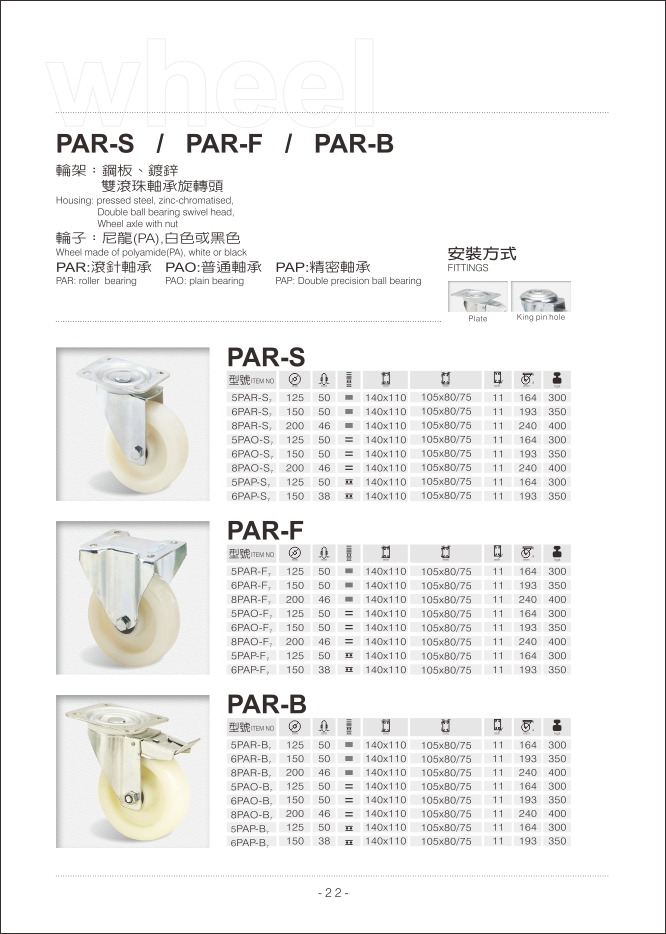

proimages/22.jpg
