Product Name : TMP-S / TMP-F / TMP-B
Product Description

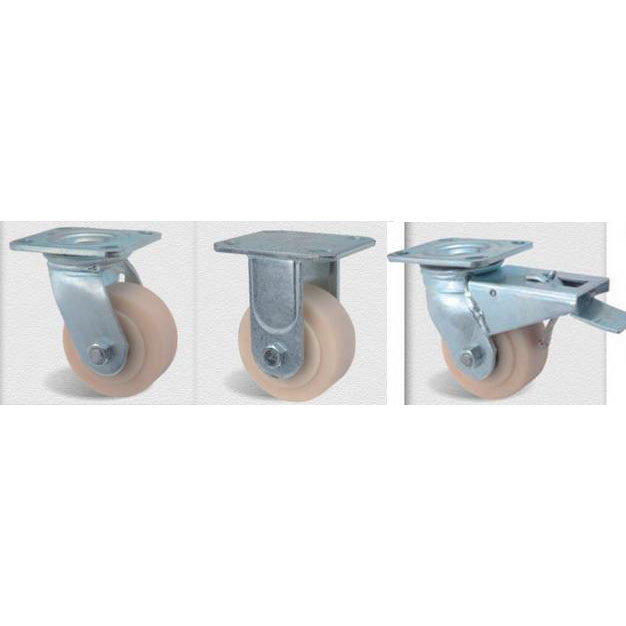

TMP SERIES CASTORS:

Specification:

Wheel diameter (mm)

75

100

125

150

200

Wheel width (mm)

50

50

50

50

50

Overall height (mm)

107

142

165

190

240

Capacity (kg)

300

360

400

450

500

Square plate fitting: 67/76x77/92 mm

Hole centre: 115 x 100 mm

Materials:

Housing:

Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut

Wheel:

Polyamide (MC)

Bearings:

Double precision ball bearing

Inquiry
Product Introduction

Housing: Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut. Wheel made of polyamide (MC).Double precision ball bearing.Non-marking.Friction resistance.For trolleys; shelving; racks; machines; catering equipmentor other applications.
