Product Name : PUP-S / PUP-F / PUP-B
Product Description

Specification:

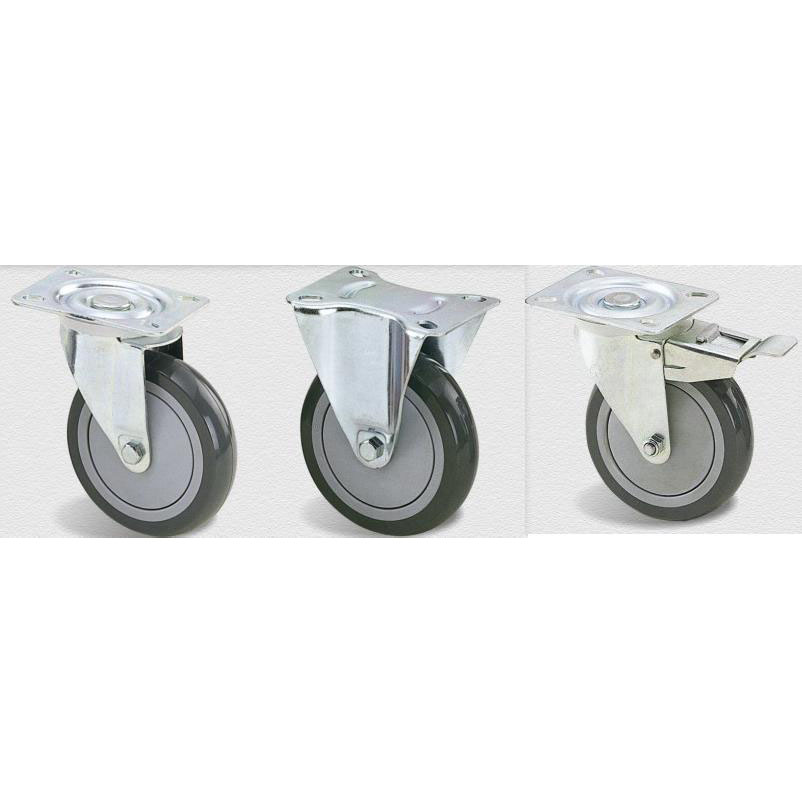

Swivel Castor (PUP-S) /
Brake Castor (PUP-B)

Rigid Castor (PUP-F)

Wheel diameter (mm)

100

125

100

125

Wheel width (mm)

32

32

32

32

Overall height (mm)

131

155

131

151

Capacity (kg)

85

110

85

110

Plate fitting (mm):

100x80
113x90

100x80
113x90
111x111

104 x 85
116 x 90

104 x 85
116 x 90
120 x 90

Hole centre (mm):

40x82
80 / 77x60
60 / 65x80 / 90

40x82
80 / 77x60
60 / 65x80 / 90
80 x 80

40x82
80 / 77x60
60 / 65x80 / 90

40x82
80 / 77x60
60 / 65x80 / 90
56x100

More available fittings: king pin hole. (Optional)

Materials:

Housing:

Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut

Wheel centre:

Polypropylene (PP)

Tread:

Polyurethane (PU; with threadguards

Bearings:

Precision ball bearing

Inquiry
Product Introduction

Housing: Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut. Material: Wheel centre - polypropylene (PP).Tread - polyurethane (PU); with threadguards. 6202 Precision Ball Bearing. Temperature range from -40 to +80.Stable and Friction resistance.Non-marking.Non-staining.Dust-proof.For medical equipment; catering equipment; electronic industry; display racks and light machines or other applications.

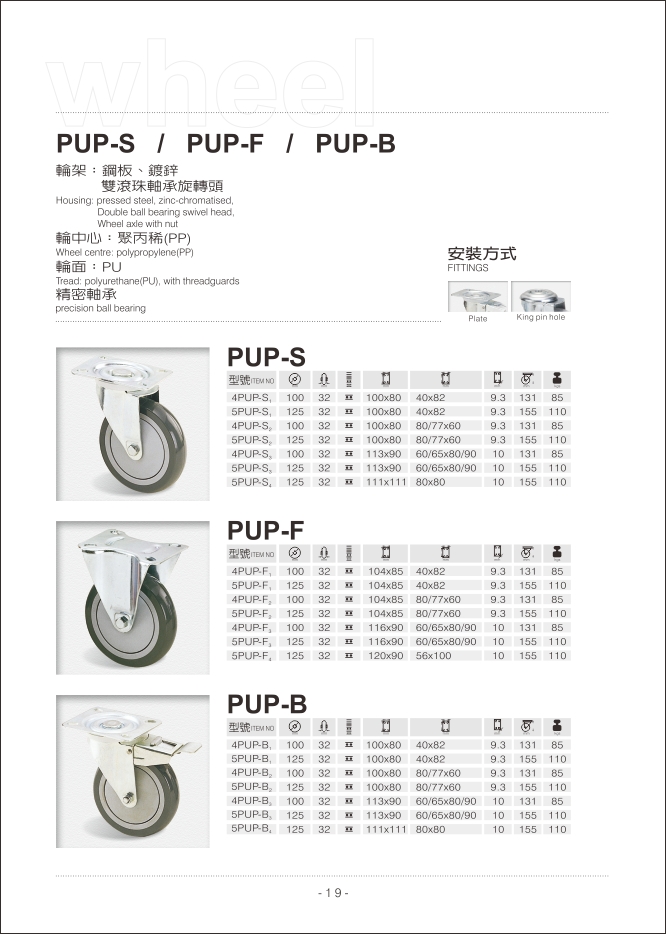

proimages/19.jpg
