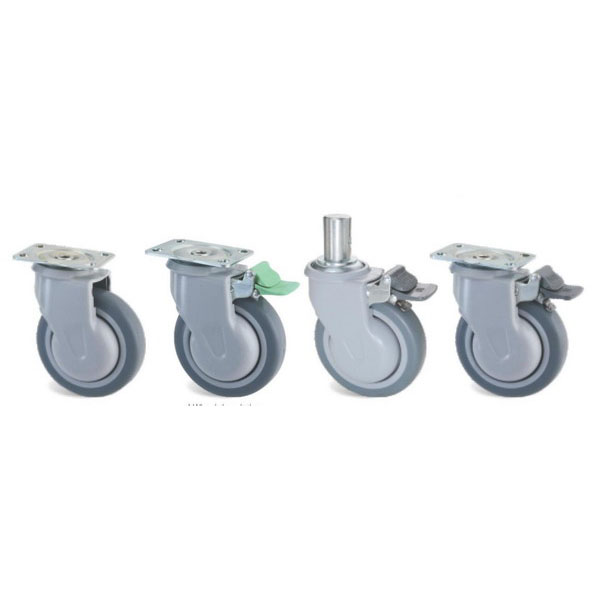

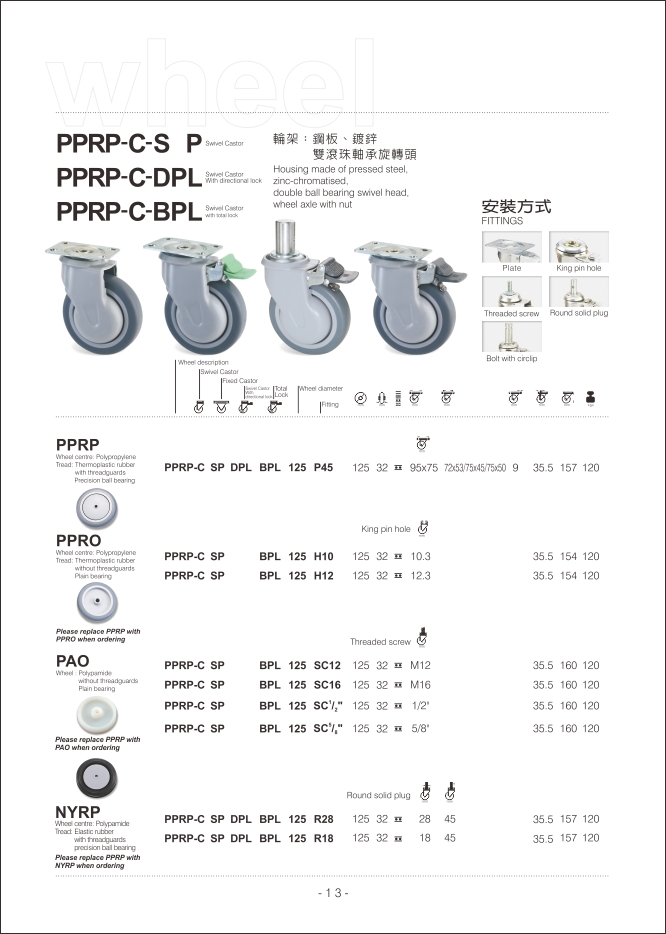

PPRP-C SERIES CASTORS

Wheel diameter (mm)

125

Wheel width (mm)

32

Overall height (mm)

157

Capacity (kg)

120

Fitting options:

Plate; king pine hole (10.3mm and 12.3 mm); threaded screw (M12; M16; 1/2" and 5/8"); round solid plug (18mm and 28 mm) and bolt with circlip

Housing:

Pressed steel; zinc-chromatised; double ball bearing swivel head; wheel axle with nut

Swivel yoke

Polypropylene (PP)

Tread: (optional)

Thermoplastic rubber (TPR)

Polyurethane (PU)

Nylon (PA)

Elastic rubber

Wheel centre (cover):

Polypropylene (PP)

Polypropylene (PP)

Nylon (PA)

Nylon (PA)

Bearings:

(optional)

Precision ball bearing; sealed

Precision ball bearing; sealed

Non

Precision ball bearing; sealed

Plain bearing

Non

Plain bearing

Non
