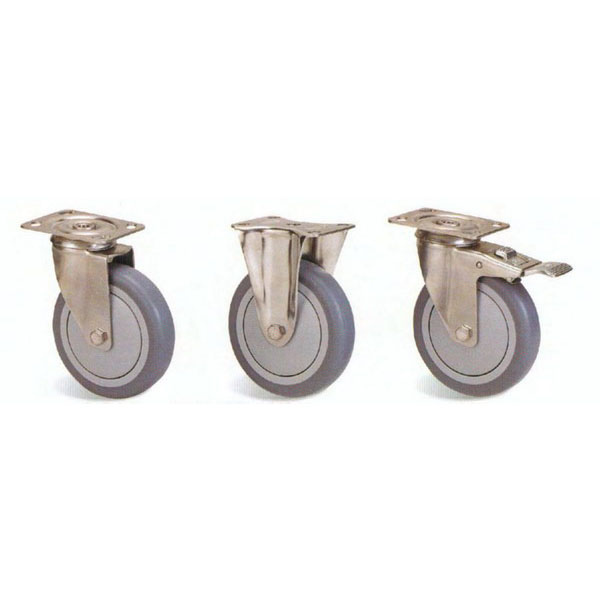

SPPRP SERIES CASTORS - 1

Specifications:

Wheel diameter (mm)

075

100

125

Wheel width (mm)

32

32

32

Overall height (mm)

108

132

157

Capacity (kg)

80

100

120

Fitting options:

Plate; king pine hole (10.3 and 12.3 mm); threaded screw (M12; M16; 1/2" and 5/8"); round solid plug (18 and 28 mm) and bolt with circlip

Materials: (optional)

Housing:

Stainless steel; double ball bearing swivel head; wheel axle with nut

Tread: (optional)

Thermoplastic rubber (TPR)

Polyurethane (PU)

Nylon (PA)

Elastic rubber

Wheel centre:

Polypropylene (PP)

Polypropylene (PP)

Nylon (PA)

Nylon (PA)

Bearings:(optional)

Precision ball bearing; sealed

Precision ball bearing; sealed

Non

Precision ball bearing; sealed

Plain bearing

Non

Plain bearing

Non
